Sidebeam Lightbar

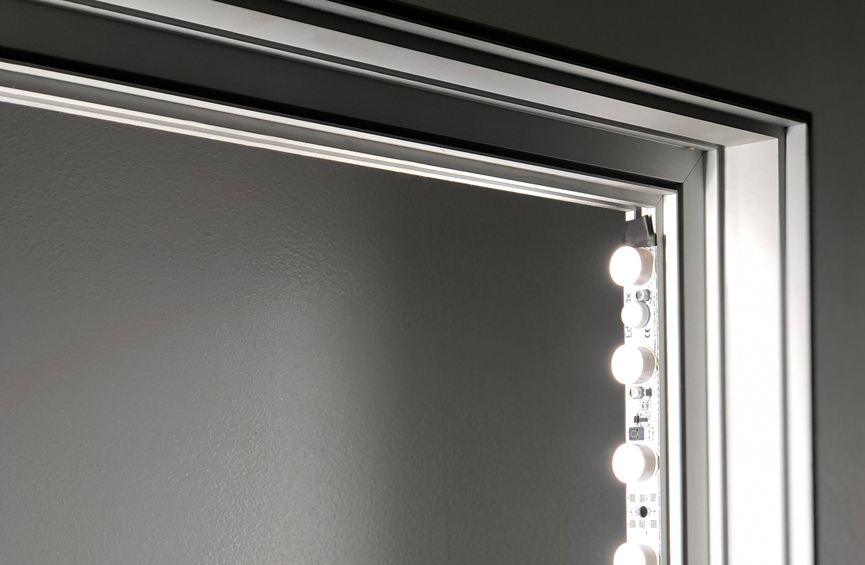

The BPS Series Side-beam or Edge-lit Lightbars are best for very shallow (as thin as 1″) light boxes or signs where back-lit light source may create uneven bright/dark spots or double sided light boxes or signs where there is no place to hold the back-lit light source. The powerful LEDs and specially designed lens allows very narrow light beam (7° or 10°) to travel as far as 8 feet and evenly distributed on the surfaces of the sign.

Model: BPS-365-5

5 x high power 3535 LEDs
24VDC, 13.2W, 120lm/W Efficacy

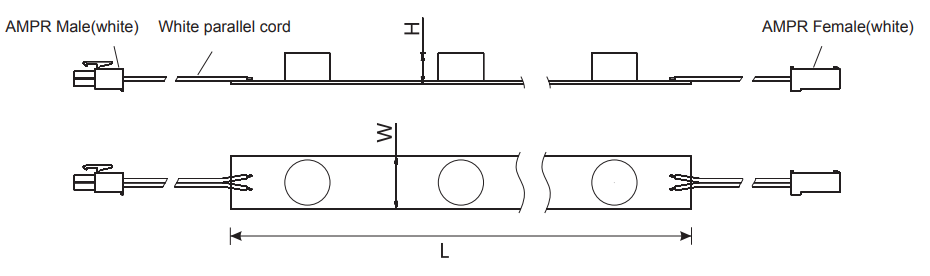

Size: L365xW25xH14(mm) or L14.4xW1.0xH0.6(Inch)
7°x30° Beam Angle
Best for double sided or single sided thin light box

Model: BPS-219-3

3 x high power 3535 LEDs
24VDC, 7.2W, 120lm/W Efficacy
Size: L219xW25xH14(mm) or L8.6xW1.0xH0.6(Inch)
7°x30° Beam Angle
Best for double sided or single sided thin light box

Pure White 6500K
