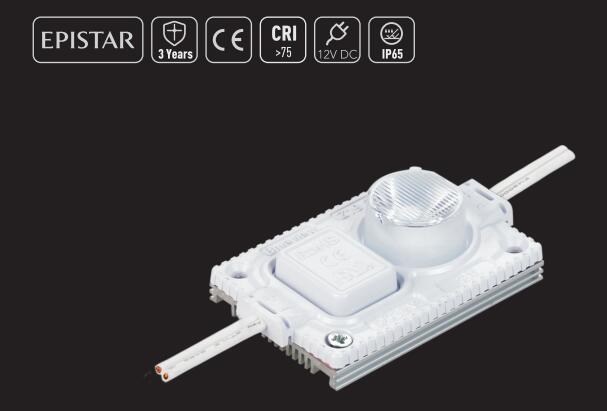

Home » Signage » Module » Sidebeam Module

Unlike the backlit LED modules who wants the beam angles the bigger the better, Sidebeam Modules are small beam angles so the light beam can travel as further as possible

Tech Specs

1 x 1818 High Performance LED
6°*90° and 10°*45° Beam Angles Available
12VDC (24VDC Option Available)
3Watt/module delivering 285 Lumen
Max. Run: 15 pcs (12VDC), 30 pcs (24VDC)
IP 65 Rated, Anti-UV, Fire Retardant
UL/ULC Approved

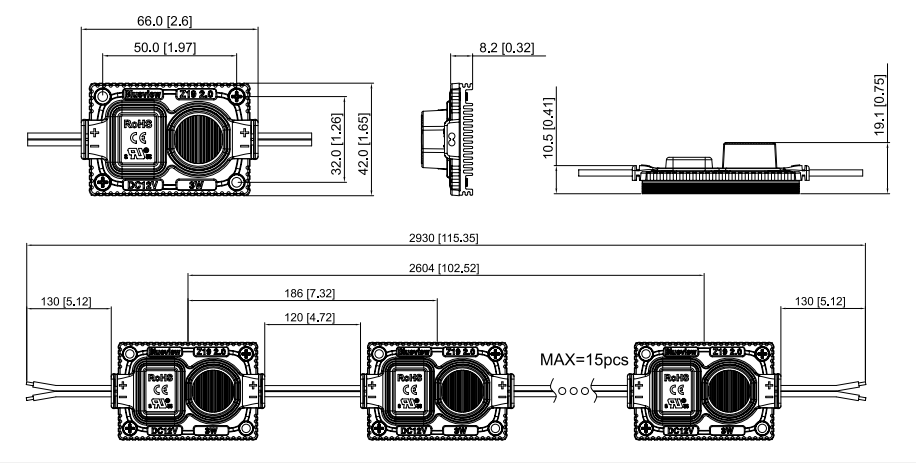

Dimensions

Unit: mm (inch)

Available Colors

Warm White: 4000K, Pure White: 6500K

Applications
